Electric Crawler Crane EC135

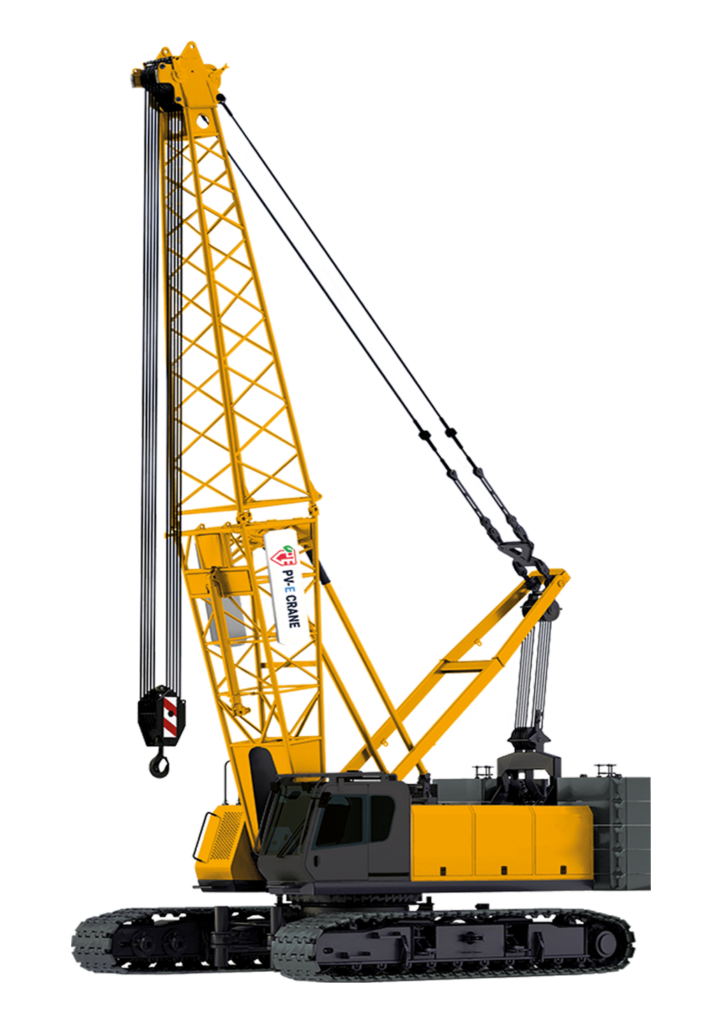

Electric Lattice Boom Crawler Crane EC135

Crawler cranes with a lattice boom are often used for heavy lifting work on construction projects and in the erection of wind turbines. Our electric crawler crane EC135 with lattice boom has several advantages; maximum lifting capacity 135 tons, good transportability and cost-efficiency. And with all that, 100%  emission-free!

Max Load capacity 135t
Max hoist height 75m
Max radius 74m
Single line pull 12t

Features EC135

100% electric

Powerful lifting capacity

Max. lifting capacity of 135 t/4 m, max. boom 75 m, fixed jib max. combination of 63 m + 31 m, luffing jib max. combination of 48.5 m + 49 m.



Self-assembly devices for safe and efficient assembly of track frames, counterweights and boom foot. Jack-up cylinders in drop and jack-up style for safe lifting of the base machine.


Modular design

Modular design for optimized performance and efficient maintenance through innovative layout of hydraulic and electric system. High-grade steel boom and machine structures thoroughly engineered and analyzed. This crane comes with high Performance winches with 22- or 26-mm wire rope and optional free fall functions for special applications.


Excellent transportability

Excellent transportability of the main structure with a width of just 3 meters. The main boom inserts of 3 m, 6 m and 11.6 m allow for containerized transport. This machine is available with multiple configurations and options to serve various markets and applications to meet most requirements.


Max. load capacity 135t 133t
at radius 5m 17t
Single line pull 12t 12t
Main boom, lightweight/heavyweight from 18m 18t
Main boom, lightweight/heavyweight up to 75m 246ft
Lattice fixed jib from 13m 43ft
Lattice fixed jib up to 31m 102ft
Lattice luffing jib from 19m 62ft
Lattice luffing jib up to 49m 161ft
Crane mass (with basic boom & hook) 130t 128ft
Central ballast 54t 53t
Engine power 200kW 200kW
Battery capacity 260kWh 260kWh

Want to know more about this crane?

Everything you need to know about the Electric Lattice Boom Crawler Crane EC135 is in our brochure. Need more information or personal assistance? We are happy to help you.
